Max. 2,440×1,200 mm
Thickness: 8 mm | 13W/m
3Modes Warm-Cool
Luxpanel xCCT: A single solution. Different targets. Total control. Not all spaces need the same …

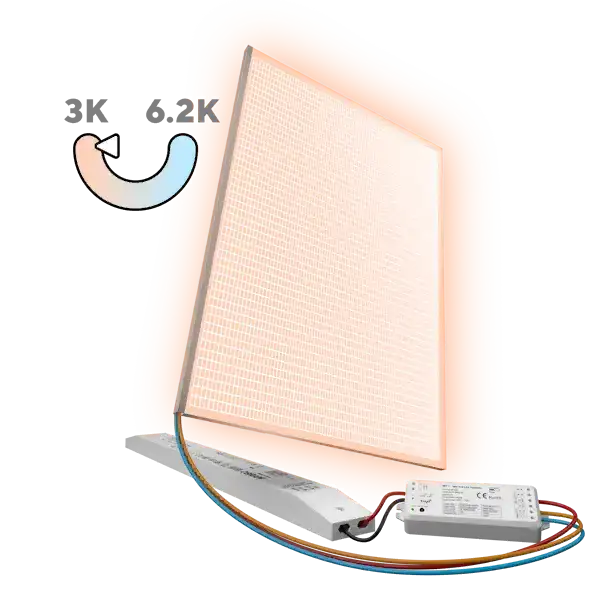

Professional dynamic target regulation Luxpanel™ xCCT is an LED panel designed for projects where lighting …
Cases where the variable target transforms the experience Luxpanel™ xCCT allows the color temperature to …
Understanding variable targeting beyond marketing Not every “dimmable CCT” panel offers a professional result.In many …
| Dimensions (mm) |
| ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Thickness (mm) | PMMA: 8 | ||||||||
| Voltage | 12 V | ||||||||
| Consumption *Per illuminated side | Max. 13 W/m |
| LED Color | 2,700K – 4,000K 3,000K – 6,200K 4,000K – 6,200K |
|---|---|
| Efficiency | ≈ 120 lm / W |
| CRI | > 85% |
| Illuminated faces | 1 – 2 |
| Lifetime | > 56,000 Hours |
|---|---|
| Tj max. | 60ºC |
| Tp max. profile | 45ºC |
| IP | 20 (optional 6X) |
| Luminous flux maintenance | Category B L70 |
| Chromatic coordinates | MacAdam 5-step ellipse |
| Chromatic coordinates (after 6.000h) | MacAdam 5-step ellipse maintenance |
Luxpanel™ xCCT
On-line sales are currently not available.
Contact us for more information.
