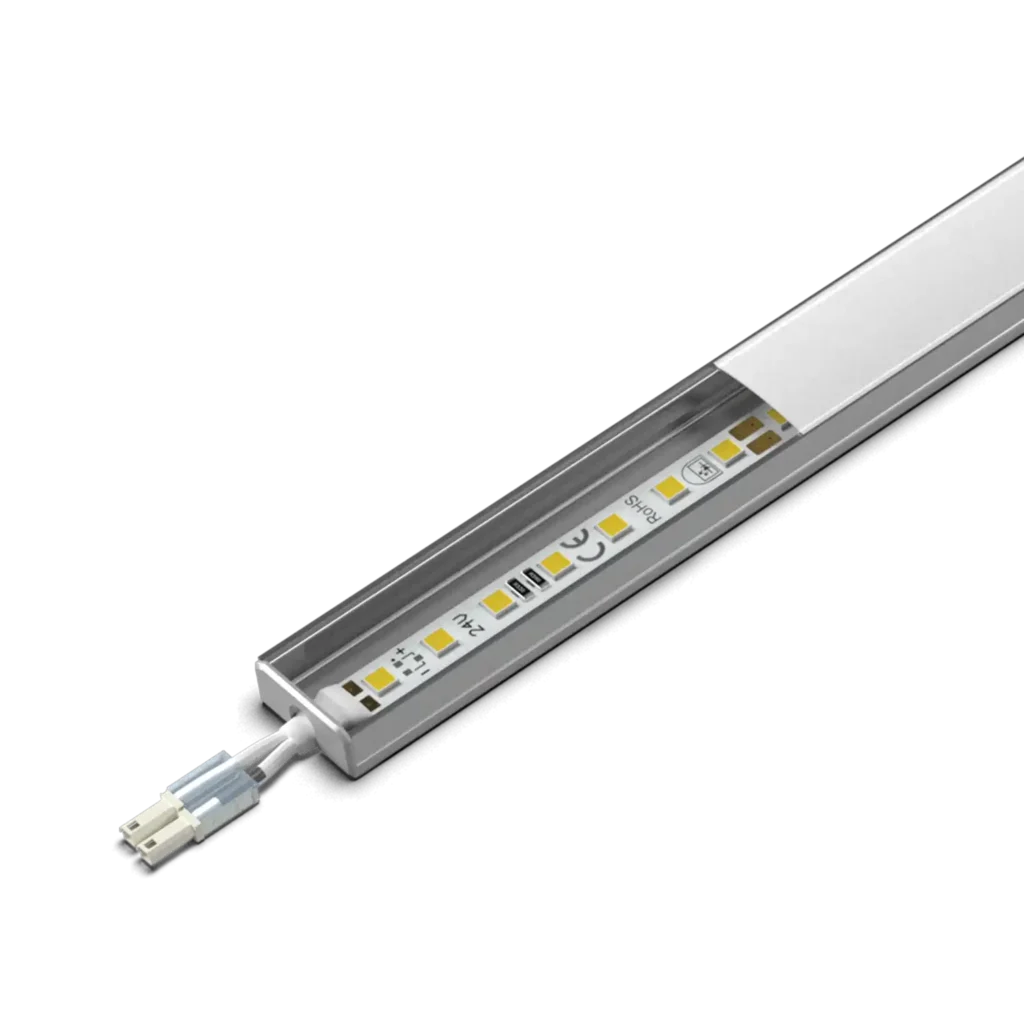

Line Ledexpert 112 CC
Max. 2.500 x 18 x 9,5
40 V | 60W Max.
2.700-6.500K | SOLAR
| Dimensions | Up to 2,500 x 18 x 9.5 mm |
|---|---|
| Voltage | 38 – 42 V |
| Consumption | 60 W/m |
| Current | 1,500 mA/m Max. |
| LED | Nichia SMD 3030 (757) |
| Number of LEDs | 112 LEDs/m 16 segments of 7 LEDs |
*The DC products use a high efficiency programmable DC power supply.
| LED color |
| ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Efficiency | ≈ 179 lm/W | ||||||||
| Lumen | ≈ 10,760 lm/m | ||||||||
| CRI | > 90% |
| Lifetime | > 56,000 Hours |
|---|---|
| Tp operation | 55ºC |
| Tp max. profile | 45ºC |
| IP | 20 |
| Luminous flux maintenance | Category L90 |
| Chromatic coordinates | MacAdam 5-step ellipse |
| Chromatic coordinates (after 6,000h) | MacAdam 5-step ellipse maintenance |

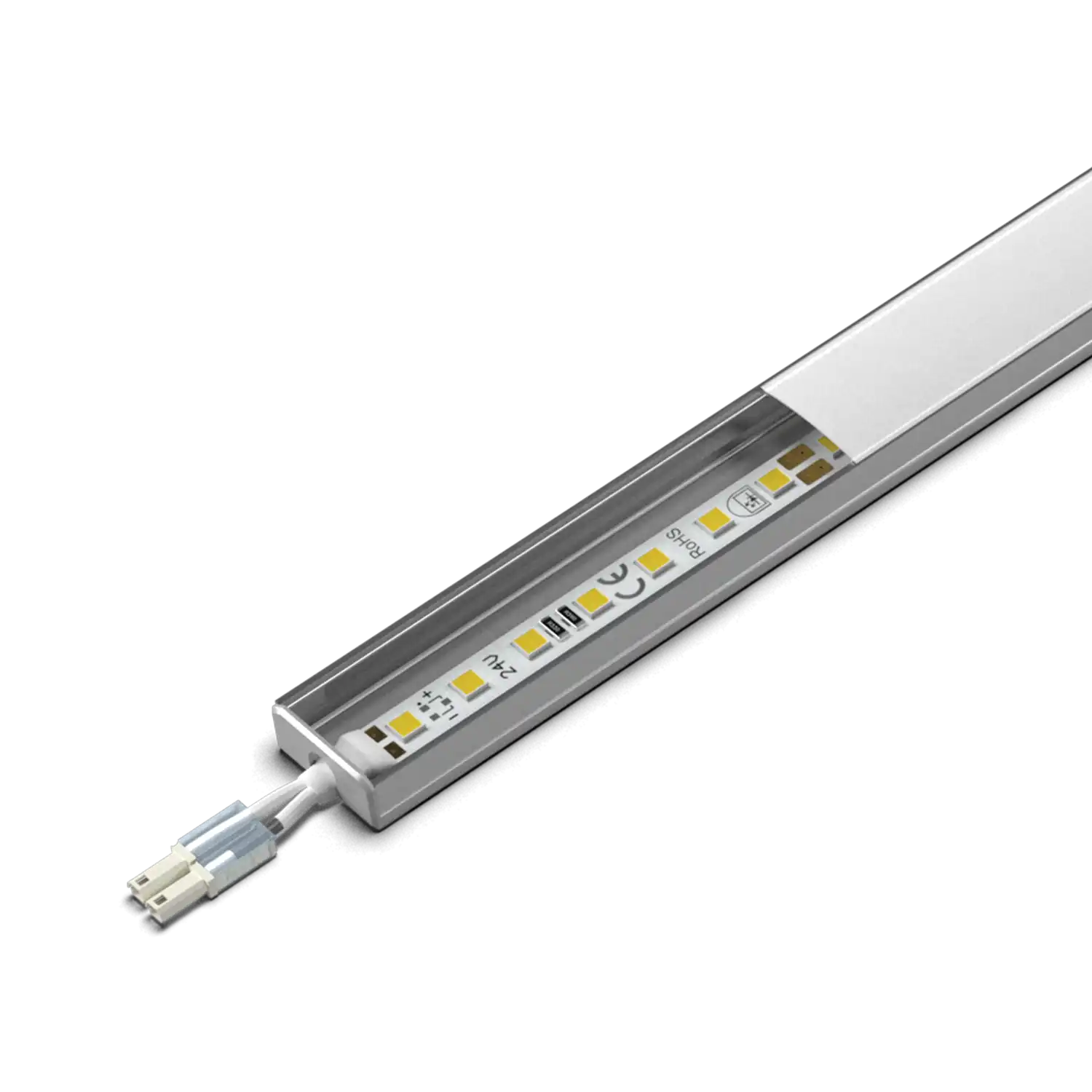

Line Ledexpert 112 CC
On-line sales are currently not available.
Contact us for more information.
